WordPress Multi-Container Installation with Docker and Nginx

WordPress is a free and open-source Content Management System (CMS) built on a MySQL database with PHP processing. Thanks to its extensible plugin architecture and templating system, most of its administration can be done through the web interface. This is a reason why WordPress is a popular choice when creating different types of websites, from blogs to product pages to eCommerce sites.

Using Docker and Docker Compose for WordPress Installation

Running WordPress typically involves installing a LAMP (Linux, Apache, MySQL, and PHP) or LEMP (Linux, Nginx, MySQL, and PHP) stack, which can be time-consuming. However, by using tools like Docker and Docker Compose, you can streamline the process of setting up your preferred stack and installing WordPress. Instead of installing individual components by hand, you can use images, which standardize things like libraries, configuration files, and environment variables. Then, run these images in containers, isolated processes that run on a shared operating system. Additionally, by using Compose, you can coordinate multiple containers — for example, an application and database — to communicate with one another.

Overview of the Installation Process

In this tutorial, you will build a multi-container WordPress installation. Your containers will include a MySQL database, an Nginx web server, and WordPress itself. You will also secure your installation by obtaining TLS/SSL certificates with Let’s Encrypt for the domain you want associated with your site. Finally, you will set up a cron job to renew your certificates so that your domain remains secure.

Prerequisites

If you are using Ubuntu version 16.04 or below, we recommend you upgrade to a more latest version since Ubuntu no longer provides support for these versions. This collection of guides will help you in upgrading your Ubuntu version.

Requirements for Following This Tutorial

To follow this tutorial, you will need:

• A server running Ubuntu, along with a non-root user with sudo privileges and an active firewall. For guidance on how to set these up, please choose your distribution from this list and follow our Initial Server Setup Guide.
• Docker installed on your server, following Steps 1 and 2 of “How To Install and Use Docker on Ubuntu” 22.04 / 20.04 / 18.04.
• Docker Compose installed on your server, following Step 1 of “How To Install Docker Compose on Ubuntu” 22.04 / 20.04 / 18.04.
• A registered domain name. This tutorial will use your_domain throughout. You can get one for free at Freenom, or use the domain registrar of your choice.
• Both of the following DNS records set up for your server. Once you have everything set up, you’re ready to begin the first step.

Step 1 — Defining the Web Server Configuration

Before running any containers, your first step is to define the configuration for your Nginx web server. Your configuration file will include some WordPress-specific location blocks, along with a location block to direct Let’s Encrypt verification requests to the Certbot client for automated certificate renewals.

Creating the Project Directory

First, create a project directory for your WordPress setup. In this example, it is called wordpress. You can name this directory differently if you’d like to:

mkdir wordpress

Then navigate to the directory:

cd wordpress

Creating the Configuration File

Next, make a directory for the configuration file:

mkdir nginx-conf

Open the file with nano or your favorite editor:

nano nginx-conf/nginx.conf

In this file, add a server block with directives for your server name and document root, and location blocks to direct the Certbot client’s request for certificates, PHP processing, and static asset requests.

Adding the Server Block Configuration

Add the following code into the file. Be sure to replace your_domain with your own domain name:

server {
        listen 80;
        listen [::]:80;

        server_name your_domain www.your_domain;

        index index.php index.html index.htm;

        root /var/www/html;

        location ~ /.well-known/acme-challenge {
                allow all;
                root /var/www/html;
        }

        location / {
                try_files $uri $uri/ /index.php$is_args$args;
        }

        location ~ \.php$ {
                try_files $uri =404;
                fastcgi_split_path_info ^(.+\.php)(/.+)$;
                fastcgi_pass wordpress:9000;
                fastcgi_index index.php;
                include fastcgi_params;
                fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
                fastcgi_param PATH_INFO $fastcgi_path_info;
        }

        location ~ /\.ht {
                deny all;
        }

        location = /favicon.ico {
                log_not_found off; access_log off;
        }
        location = /robots.txt {
                log_not_found off; access_log off; allow all;
        }
        location ~* \.(css|gif|ico|jpeg|jpg|js|png)$ {
                expires max;
                log_not_found off;
        }
}

Understanding the Server Block Configuration

Our server block includes the following information:

Directives

• listen: This tells Nginx to listen on port 80, which will allow you to use Certbot’s webroot plugin for your certificate requests. Note that you are not including port 443 yet — you will update your configuration to include SSL once you have successfully obtained your certificates.
• server_name: This defines your server name and the server block that should be used for requests to your server. Be sure to replace your_domain in this line with your own domain name.
• index: This directive defines the files that will be used as indexes when processing requests to your server. You modified the default order of priority here, moving index.php in front of index.html so that Nginx prioritizes files called index.php when possible.
• root: This directive names the root directory for requests to your server. This directory, /var/www/html, is created as a mount point at build time by instructions in your WordPress Dockerfile. These Dockerfile instructions also ensure that the files from the WordPress release are mounted to this volume.

Location Blocks

• location ~ /.well-known/acme-challenge: This location block will handle requests to the .well-known directory, where Certbot will place a temporary file to validate that the DNS for your domain resolves to your server. With this configuration in place, you will be able to use Certbot’s webroot plugin to obtain certificates for your domain.
• location /: In this location block, a try_files directive is used to check for files that match individual URI requests. Instead of returning a 404 Not Found status as a default, however, you’ll pass control to WordPress’s index.php file with the request arguments.
• location ~ \.php$: This location block will handle PHP processing and proxy these requests to your wordpress container. Because your WordPress Docker image will be based on the php:fpm image, you will also include configuration options that are specific to the FastCGI protocol in this block. Nginx requires an independent PHP processor for PHP requests. In this case, these requests will be handled by the php-fpm processor that’s included with the php:fpm image. Additionally, this location block includes FastCGI-specific directives, variables, and options that will proxy requests to the WordPress application running in your wordpress container, set the preferred index for the parsed request URI, and parse URI requests.
• location ~ /\.ht: This block will handle .htaccess files since Nginx won’t serve them. The deny all directive ensures that .htaccess files will never be served to users.
• location = /favicon.ico, location = /robots.txt: These blocks ensure that requests to /favicon.ico and /robots.txt will not be logged.
• location ~* \.(css|gif|ico|jpeg|jpg|js|png)$: This block turns off logging for static asset requests and ensures that these assets are highly cacheable, as they are typically expensive to serve.

For more information about FastCGI proxying, read Understanding and Implementing FastCGI Proxying in Nginx. For information about server and location blocks, check out Understanding Nginx Server and Location Block Selection Algorithms.

Saving and Closing the File

Save and close the file when you are finished editing. If you used nano, do so by pressing CTRL+X, then Y, and finally ENTER.

With your Nginx configuration in place, you can move on to creating environment variables to pass to your application and database containers at runtime.

Step 2 — Defining Environment Variables

Your database and WordPress application containers will need access to certain environment variables at runtime in order for your application data to persist and be accessible to your application. These variables include both sensitive and non-sensitive information: sensitive values for your MySQL root password and application database user and password, and non-sensitive information for your application database name and host.

Rather than setting all of these values in your Docker Compose file — the main file that contains information about how your containers will run — set the sensitive values in an .env file and restrict its circulation. This will prevent these values from copying over to your project repositories and being exposed publicly.

Creating the .env File

In your main project directory, ~/wordpress, open a file called .env:

nano .env

The confidential values that you set in this file include a password for the MySQL root user, and a username and password that WordPress will use to access the database.

Add the following variable names and values to the file. Remember to supply your own values here for each variable:

MYSQL_ROOT_PASSWORD=your_root_password
MYSQL_USER=your_wordpress_database_user
MYSQL_PASSWORD=your_wordpress_database_password

Included is a password for the root administrative account, as well as your preferred username and password for your application database.

Save and close the file when you are finished editing.

Securing Sensitive Information

Because your .env file contains sensitive information, you want to ensure that it is included in your project’s .gitignore and .dockerignore files. This tells Git and Docker what files not to copy to your Git repositories and Docker images, respectively.

If you plan to work with Git for version control, initialize your current working directory as a repository with git init:

git init

Then create and open a .gitignore file:

nano .gitignore

Add .env to the file:

.env

Save and close the file when you are finished editing.

Adding .env to .dockerignore

Likewise, it’s a good precaution to add .env to a .dockerignore file, so that it doesn’t end up on your containers when you are using this directory as your build context.

Open the file:

nano .dockerignore

Add .env to the file:

.env

Below this, you can optionally add files and directories associated with your application’s development:

.env
.git
docker-compose.yml
.dockerignore

Save and close the file when you are finished.

With your sensitive information in place, you can now move on to defining your services in a docker-compose.yml file.

Step 3 — Defining Services with Docker Compose

Your docker-compose.yml file will contain the service definitions for your setup. A service in Compose is a running container, and service definitions specify information about how each container will run.

Using Compose, you can define different services to run multi-container applications since Compose allows you to link these services together with shared networks and volumes. This will be helpful for your current setup since you will create different containers for your database, WordPress application, and web server. You will also create a container to run the Certbot client to obtain certificates for your web server.

Creating the Docker Compose File

To begin, create and open the docker-compose.yml file:

nano docker-compose.yml

Add the following code to define your Compose file version and db database service:

version: '3'

services:
  db:
    image: mysql:8.0
    container_name: db
    restart: unless-stopped
    env_file: .env
    environment:
      - MYSQL_DATABASE=wordpress
    volumes:
      - dbdata:/var/lib/mysql
    command: '--default-authentication-plugin=mysql_native_password'
    networks:
      - app-network

Understanding the db Service Definition

• image: This tells Compose what image to pull to create the container. You are pinning the mysql:8.0 image here to avoid future conflicts as the mysql:latest image continues to be updated. For more information about version pinning and avoiding dependency conflicts, read the Docker documentation on Dockerfile best practices.
• container_name: This specifies a name for the container.
• restart: This defines the container restart policy. The default is no, but you have set the container to restart unless it is stopped manually.
• env_file: This option tells Compose that you would like to add environment variables from a file called .env, located in your build context. In this case, the build context is your current directory.
• environment: This option allows you to add additional environment variables, beyond those defined in your .env file. You will set the MYSQL_DATABASE variable equal to wordpress to provide a name for your application database. Because this is non-sensitive information, you can include it directly in the docker-compose.yml file.
• volumes: Here, you’re mounting a named volume called dbdata to the /var/lib/mysql directory on the container. This is the standard data directory for MySQL on most distributions.
• command: This option specifies a command to override the default CMD instruction for the image. In this particular case, you will add an option to the Docker image’s standard mysqld command, which starts the MySQL server on the container. This option, --default-authentication-plugin=mysql_native_password, sets the --default-authentication-plugin system variable to mysql_native_password, specifying which authentication mechanism should govern new authentication requests to the server. Since PHP and therefore your WordPress image won’t support MySQL’s newer authentication default, you must make this adjustment in order to authenticate your application database user.
• networks: This specifies that your application service will join the app-network network, which you will define at the bottom of the file.

Adding the WordPress Application Service

Next, below your db service definition, add the definition for your WordPress application service:

...
  wordpress:
    depends_on:
      - db
    image: wordpress:5.1.1-fpm-alpine
    container_name: wordpress
    restart: unless-stopped
    env_file: .env
    environment:
      - WORDPRESS_DB_HOST=db:3306
      - WORDPRESS_DB_USER=$MYSQL_USER
      - WORDPRESS_DB_PASSWORD=$MYSQL_PASSWORD
      - WORDPRESS_DB_NAME=wordpress
    volumes:
      - wordpress:/var/www/html
    networks:
      - app-network

Understanding the WordPress Service Definition

• depends_on: This option ensures that your containers will start in order of dependency, with the wordpress container starting after the db container. Your WordPress application relies on the existence of your application database and user, so expressing this order of dependency will enable your application to start properly.
• image: For this setup, you are using the 5.1.1-fpm-alpine WordPress image. As discussed in Step 1, using this image ensures that your application will have the php-fpm processor that Nginx requires to handle PHP processing. This is also an alpine image, derived from the Alpine Linux project, which will help keep your overall image size down. For more information about the benefits and drawbacks of using alpine images and whether or not this makes sense for your application, review the full discussion under the Image Variants section of the Docker Hub WordPress image page.
• env_file: Again, you specify that you want to pull values from your .env file, since this is where you defined your application database user and password.
• environment: Here, you’re using the values you defined in your .env file, but are assigning them to the variable names that the WordPress image expects: WORDPRESS_DB_USER and WORDPRESS_DB_PASSWORD. You’re also defining a WORDPRESS_DB_HOST, which will be the MySQL server running on the db container that’s accessible on MySQL’s default port, 3306. Your WORDPRESS_DB_NAME will be the same value you specified in the MySQL service definition for your MYSQL_DATABASE: wordpress.
• volumes: You are mounting a named volume called wordpress to the /var/www/html mountpoint created by the WordPress image. Using a named volume in this way will allow you to share your application code with other containers.
• networks: You’re also adding the wordpress container to the app-network network.

Adding the Web Server (Nginx) Service

Next, below the wordpress application service definition, add the following definition for your web server Nginx service:

...
  webserver:
    depends_on:
      - wordpress
    image: nginx:1.15.12-alpine
    container_name: webserver
    restart: unless-stopped
    ports:
      - "80:80"
    volumes:
      - wordpress:/var/www/html
      - ./nginx-conf:/etc/nginx/conf.d
      - certbot-etc:/etc/letsencrypt
    networks:
      - app-network

Understanding the Web Server Service Definition

• depends_on: Ensures that your webserver container starts only after the wordpress container is running.
• image: Uses the nginx:1.15.12-alpine image, which keeps the container size small.
• ports: Exposes port 80 to enable HTTP traffic based on the nginx.conf configuration.
• volumes: Defines a mix of named volumes and bind mounts:
  • wordpress:/var/www/html: Mounts the WordPress application code.
  • ./nginx-conf:/etc/nginx/conf.d: Binds the Nginx configuration directory on the host to the container.
  • certbot-etc:/etc/letsencrypt: Mounts Let’s Encrypt certificates and keys for your domain.
• networks: Adds this container to the app-network network.

Adding the Certbot Service

Finally, below your webserver definition, add your last service definition for the certbot service. Be sure to replace the email address and domain names listed here with your own information:

  certbot:
    depends_on:
      - webserver
    image: certbot/certbot
    container_name: certbot
    volumes:
      - certbot-etc:/etc/letsencrypt
      - wordpress:/var/www/html
    command: certonly --webroot --webroot-path=/var/www/html --email sammy@your_domain --agree-tos --no-eff-email --staging -d your_domain -d www.your_domain

Understanding the Certbot Service Definition

• depends_on: Ensures the certbot container starts only after the webserver container.
• image: Uses the certbot/certbot image from Docker Hub.
• volumes: Shares resources with the Nginx container:
  • certbot-etc:/etc/letsencrypt: Stores SSL certificates and keys.
  • wordpress:/var/www/html: Shares the application files.
• command: Uses Certbot to obtain an SSL certificate with the following options:
  • --webroot: Uses the webroot plugin for authentication.
  • --webroot-path=/var/www/html: Specifies the webroot directory.
  • --email sammy@your_domain: Email for registration and recovery.
  • --agree-tos: Agrees to ACME’s Subscriber Agreement.
  • --no-eff-email: Prevents email sharing with the EFF.
  • --staging: Uses Let’s Encrypt’s staging environment for testing.
  • -d your_domain -d www.your_domain: Specifies domain names for the certificate.

Adding Network and Volume Definitions

Below the certbot service definition, add your network and volume definitions:

...
volumes:
  certbot-etc:
  wordpress:
  dbdata:

networks:
  app-network:
    driver: bridge

Understanding Network and Volume Definitions

• volumes: Defines three named volumes:
  • certbot-etc: Stores Let’s Encrypt certificates and keys.
  • wordpress: Stores WordPress application files.
  • dbdata: Stores MySQL database files.
• networks: The user-defined bridge network app-network enables communication between your containers since they are on the same Docker daemon host. This streamlines traffic and communication within the application, as it opens all ports between containers on the same bridge network without exposing any ports to the outside world. Thus, your db, wordpress, and webserver containers can communicate with each other, and you only need to expose port 80 for front-end access to the application.

Complete Docker Compose File

The following is the complete docker-compose.yml file:

version: '3'

services:
  db:
    image: mysql:8.0
    container_name: db
    restart: unless-stopped
    env_file: .env
    environment:
      - MYSQL_DATABASE=wordpress
    volumes:
      - dbdata:/var/lib/mysql
    command: '--default-authentication-plugin=mysql_native_password'
    networks:
      - app-network

  wordpress:
    depends_on:
      - db
    image: wordpress:5.1.1-fpm-alpine
    container_name: wordpress
    restart: unless-stopped
    env_file: .env
    environment:
      - WORDPRESS_DB_HOST=db:3306
      - WORDPRESS_DB_USER=$MYSQL_USER
      - WORDPRESS_DB_PASSWORD=$MYSQL_PASSWORD
      - WORDPRESS_DB_NAME=wordpress
    volumes:
      - wordpress:/var/www/html
    networks:
      - app-network

  webserver:
    depends_on:
      - wordpress
    image: nginx:1.15.12-alpine
    container_name: webserver
    restart: unless-stopped
    ports:
      - "80:80"
    volumes:
      - wordpress:/var/www/html
      - ./nginx-conf:/etc/nginx/conf.d
      - certbot-etc:/etc/letsencrypt
    networks:
      - app-network

  certbot:
    depends_on:
      - webserver
    image: certbot/certbot
    container_name: certbot
    volumes:
      - certbot-etc:/etc/letsencrypt
      - wordpress:/var/www/html
    command: certonly --webroot --webroot-path=/var/www/html --email sammy@your_domain --agree-tos --no-eff-email --staging -d your_domain -d www.your_domain

volumes:
  certbot-etc:
  wordpress:
  dbdata:

networks:
  app-network:
    driver: bridge

Save and close the file when you are finished editing.

With your service definitions in place, you are ready to start the containers and test your certificate requests.

Step 4 — Obtaining SSL Certificates and Credentials

Start your containers with the docker-compose up command, which will create and run your containers in the order you have specified. By adding the -d flag, the command will run the db, wordpress, and webserver containers in the background:

docker-compose up -d

The following output confirms that your services have been created:

Output
Creating db ... done
Creating wordpress ... done
Creating webserver ... done
Creating certbot   ... done

Using docker-compose ps, check the status of your services:

docker-compose ps

Once complete, your db, wordpress, and webserver services will be Up and the certbot container will have exited with a 0 status message:

Output
  Name                 Command               State           Ports
-------------------------------------------------------------------------
certbot     certbot certonly --webroot ...   Exit 0
db          docker-entrypoint.sh --def ...   Up       3306/tcp, 33060/tcp
webserver   nginx -g daemon off;             Up       0.0.0.0:80->80/tcp
wordpress   docker-entrypoint.sh php-fpm     Up       9000/tcp

Anything other than Up in the State column for the db, wordpress, or webserver services, or an exit status other than 0 for the certbot container means that you may need to check the service logs with the docker-compose logs command:

docker-compose logs service_name

You can now check that your certificates have been mounted to the webserver container with docker-compose exec:

docker-compose exec webserver ls -la /etc/letsencrypt/live

Once your certificate requests succeed, the following is the output:

Output
total 16
drwx------    3 root     root          4096 May 10 15:45 .
drwxr-xr-x    9 root     root          4096 May 10 15:45 ..
-rw-r--r--    1 root     root           740 May 10 15:45 README
drwxr-xr-x    2 root     root          4096 May 10 15:45 your_domain

Now that you know your request will be successful, you can edit the certbot service definition to remove the --staging flag.

Updating Certbot to Obtain a Valid SSL Certificate

Open docker-compose.yml:

nano docker-compose.yml

Find the section of the file with the certbot service definition, and replace the --staging flag in the command option with the --force-renewal flag, which will tell Certbot that you want to request a new certificate with the same domains as an existing certificate.

The following is the updated certbot service definition:

...
  certbot:
    depends_on:
      - webserver
    image: certbot/certbot
    container_name: certbot
    volumes:
      - certbot-etc:/etc/letsencrypt
      - certbot-var:/var/lib/letsencrypt
      - wordpress:/var/www/html
    command: certonly --webroot --webroot-path=/var/www/html --email sammy@your_domain --agree-tos --no-eff-email --force-renewal -d your_domain -d www.your_domain
...

Recreating the Certbot Container

You can now run docker-compose up to recreate the certbot container. Use the --no-deps option to tell Compose that it can skip starting the webserver service, since it is already running:

docker-compose up --force-recreate --no-deps certbot

Checking the Output

The following output indicates that your certificate request was successful:

Output
Recreating certbot ... done
Attaching to certbot
certbot      | Saving debug log to /var/log/letsencrypt/letsencrypt.log
certbot      | Plugins selected: Authenticator webroot, Installer None
certbot      | Renewing an existing certificate
certbot      | Performing the following challenges:
certbot      | http-01 challenge for your_domain
certbot      | http-01 challenge for www.your_domain
certbot      | Using the webroot path /var/www/html for all unmatched domains.
certbot      | Waiting for verification...
certbot      | Cleaning up challenges
certbot      | IMPORTANT NOTES:
certbot      |  - Congratulations! Your certificate and chain have been saved at:
certbot      |    /etc/letsencrypt/live/your_domain/fullchain.pem
certbot      |    Your key file has been saved at:
certbot      |    /etc/letsencrypt/live/your_domain/privkey.pem
certbot      |    Your cert will expire on 2019-08-08. To obtain a new or tweaked
certbot      |    version of this certificate in the future, simply run certbot
certbot      |    again. To non-interactively renew *all* of your certificates, run
certbot      |    "certbot renew"
certbot      |  - Your account credentials have been saved in your Certbot
certbot      |    configuration directory at /etc/letsencrypt. You should make a
certbot      |    secure backup of this folder now. This configuration directory will
certbot      |    also contain certificates and private keys obtained by Certbot so
certbot      |    making regular backups of this folder is ideal.
certbot      |  - If you like Certbot, please consider supporting our work by:
certbot      |
certbot      |    Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
certbot      |    Donating to EFF:                    https://eff.org/donate-le
certbot      |
certbot exited with code 0

With your certificates in place, you can move on to modifying your Nginx configuration to include SSL.

Step 5 — Modifying the Web Server Configuration and Service Definition

Enabling SSL in your Nginx configuration will involve adding an HTTP redirect to HTTPS, specifying your SSL certificate and key locations, and adding security parameters and headers.

Stopping the Web Server

Since you are going to recreate the webserver service to include these additions, you can stop it now:

docker-compose stop webserver

Adding Recommended Security Parameters

Before modifying the configuration file, get the recommended Nginx security parameters from Certbot using curl:

curl -sSLo nginx-conf/options-ssl-nginx.conf https://raw.githubusercontent.com/certbot/certbot/master/certbot-nginx/certbot_nginx/_internal/tls_configs/options-ssl-nginx.conf

This command will save these parameters in a file called options-ssl-nginx.conf, located in the nginx-conf directory.

Replacing the Nginx Configuration File

Next, remove the Nginx configuration file you created earlier:

rm nginx-conf/nginx.conf

Create and open another version of the file:

nano nginx-conf/nginx.conf

Updating the Configuration File

Add the following code to the file to redirect HTTP to HTTPS and to add SSL credentials, protocols, and security headers. Remember to replace your_domain with your own domain:

server {
        listen 80;
        listen [::]:80;

        server_name your_domain www.your_domain;

        location ~ /.well-known/acme-challenge {
                allow all;
                root /var/www/html;
        }

        location / {
                rewrite ^ https://$host$request_uri? permanent;
        }
}

server {
        listen 443 ssl http2;
        listen [::]:443 ssl http2;
        server_name your_domain www.your_domain;

        index index.php index.html index.htm;

        root /var/www/html;

        server_tokens off;

        ssl_certificate /etc/letsencrypt/live/your_domain/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/your_domain/privkey.pem;

        include /etc/nginx/conf.d/options-ssl-nginx.conf;

        add_header X-Frame-Options "SAMEORIGIN" always;
        add_header X-XSS-Protection "1; mode=block" always;
        add_header X-Content-Type-Options "nosniff" always;
        add_header Referrer-Policy "no-referrer-when-downgrade" always;
        add_header Content-Security-Policy "default-src * data: 'unsafe-eval' 'unsafe-inline'" always;
        # add_header Strict-Transport-Security "max-age=31536000; includeSubDomains; preload" always;
        # enable strict transport security only if you understand the implications

        location / {
                try_files $uri $uri/ /index.php$is_args$args;
        }

        location ~ \.php$ {
                try_files $uri =404;
                fastcgi_split_path_info ^(.+\.php)(/.+)$;
                fastcgi_pass wordpress:9000;
                fastcgi_index index.php;
                include fastcgi_params;
                fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
                fastcgi_param PATH_INFO $fastcgi_path_info;
        }

        location ~ /\.ht {
                deny all;
        }

        location = /favicon.ico {
                log_not_found off; access_log off;
        }
        location = /robots.txt {
                log_not_found off; access_log off; allow all;
        }
        location ~* \.(css|gif|ico|jpeg|jpg|js|png)$ {
                expires max;
                log_not_found off;
        }
}

With your updated Nginx configuration in place, you can proceed with restarting your web server.

Finalizing Web Server Configuration and Updating Docker Compose

The HTTP server block specifies the webroot for Certbot renewal requests to the .well-known/acme-challenge directory. It also includes a rewrite directive that directs HTTP requests to the root directory to HTTPS.

The HTTPS server block enables ssl and http2. To read more about how HTTP/2 iterates on HTTP protocols and the benefits it can have for website performance, please read the introduction to How To Set Up Nginx with HTTP/2 Support on Ubuntu 18.04.

This block also includes your SSL certificate and key locations, along with the recommended Certbot security parameters that you saved to nginx-conf/options-ssl-nginx.conf.

Additionally, included are some security headers that will enable you to get A ratings on things like the SSL Labs and Security Headers server test sites. These headers include:

• X-Frame-Options: Prevents clickjacking attacks by restricting iframe embedding.
• X-Content-Type-Options: Prevents MIME-type sniffing.
• Referrer-Policy: Controls the amount of referrer information sent.
• Content-Security-Policy: Defines which content sources are trusted.
• X-XSS-Protection: Protects against cross-site scripting (XSS) attacks.

The HTTP Strict Transport Security (HSTS) header is commented out — enable this only if you understand the implications and have assessed its preload functionality.

Your root and index directives are also located in this block, as are the rest of the WordPress-specific location blocks discussed in Step 1.

Once you have finished editing, save and close the file.

Updating Docker Compose Configuration

Before recreating the webserver service, you will need to add a 443 port mapping to your webserver service definition.

Open your docker-compose.yml file:

nano docker-compose.yml

In the webserver service definition, add the following port mapping:

...
  webserver:
    depends_on:
      - wordpress
    image: nginx:1.15.12-alpine
    container_name: webserver
    restart: unless-stopped
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - wordpress:/var/www/html
      - ./nginx-conf:/etc/nginx/conf.d
      - certbot-etc:/etc/letsencrypt
    networks:
      - app-network

Complete Docker Compose File

Here is the complete docker-compose.yml file after the edits:

version: '3'

services:
  db:
    image: mysql:8.0
    container_name: db
    restart: unless-stopped
    env_file: .env
    environment:
      - MYSQL_DATABASE=wordpress
    volumes:
      - dbdata:/var/lib/mysql
    command: '--default-authentication-plugin=mysql_native_password'
    networks:
      - app-network

  wordpress:
    depends_on:
      - db
    image: wordpress:5.1.1-fpm-alpine
    container_name: wordpress
    restart: unless-stopped
    env_file: .env
    environment:
      - WORDPRESS_DB_HOST=db:3306
      - WORDPRESS_DB_USER=$MYSQL_USER
      - WORDPRESS_DB_PASSWORD=$MYSQL_PASSWORD
      - WORDPRESS_DB_NAME=wordpress
    volumes:
      - wordpress:/var/www/html
    networks:
      - app-network

  webserver:
    depends_on:
      - wordpress
    image: nginx:1.15.12-alpine
    container_name: webserver
    restart: unless-stopped
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - wordpress:/var/www/html
      - ./nginx-conf:/etc/nginx/conf.d
      - certbot-etc:/etc/letsencrypt
    networks:
      - app-network

  certbot:
    depends_on:
      - webserver
    image: certbot/certbot
    container_name: certbot
    volumes:
      - certbot-etc:/etc/letsencrypt
      - wordpress:/var/www/html
    command: certonly --webroot --webroot-path=/var/www/html --email sammy@your_domain --agree-tos --no-eff-email --force-renewal -d your_domain -d www.your_domain

volumes:
  certbot-etc:
  wordpress:
  dbdata:

networks:
  app-network:
    driver: bridge

With these updates in place, you are now ready to restart your webserver service with SSL enabled.

Restarting the Web Server Service

Save and close the file when you are finished editing.

Recreating the Web Server Service

Recreate the webserver service with the following command:

docker-compose up -d --force-recreate --no-deps webserver

Checking the Service Status

Check your services with docker-compose ps:

docker-compose ps

The output should indicate that your db, wordpress, and webserver services are running:

Output
  Name                 Command               State                     Ports
----------------------------------------------------------------------------------------------
certbot     certbot certonly --webroot ...   Exit 0
db          docker-entrypoint.sh --def ...   Up       3306/tcp, 33060/tcp
webserver   nginx -g daemon off;             Up       0.0.0.0:443->443/tcp, 0.0.0.0:80->80/tcp
wordpress   docker-entrypoint.sh php-fpm     Up       9000/tcp

Finalizing WordPress Installation

With your containers running, you can complete your WordPress installation through the web interface.

Visit https://your_domain in your web browser, and follow the on-screen instructions to set up WordPress.

Step 6 — Completing the Installation Through the Web Interface

With your containers running, finish the installation through the WordPress web interface.

Accessing the Installation Page

In your web browser, navigate to your server’s domain. Remember to substitute your_domain with your own domain name:

https://your_domain

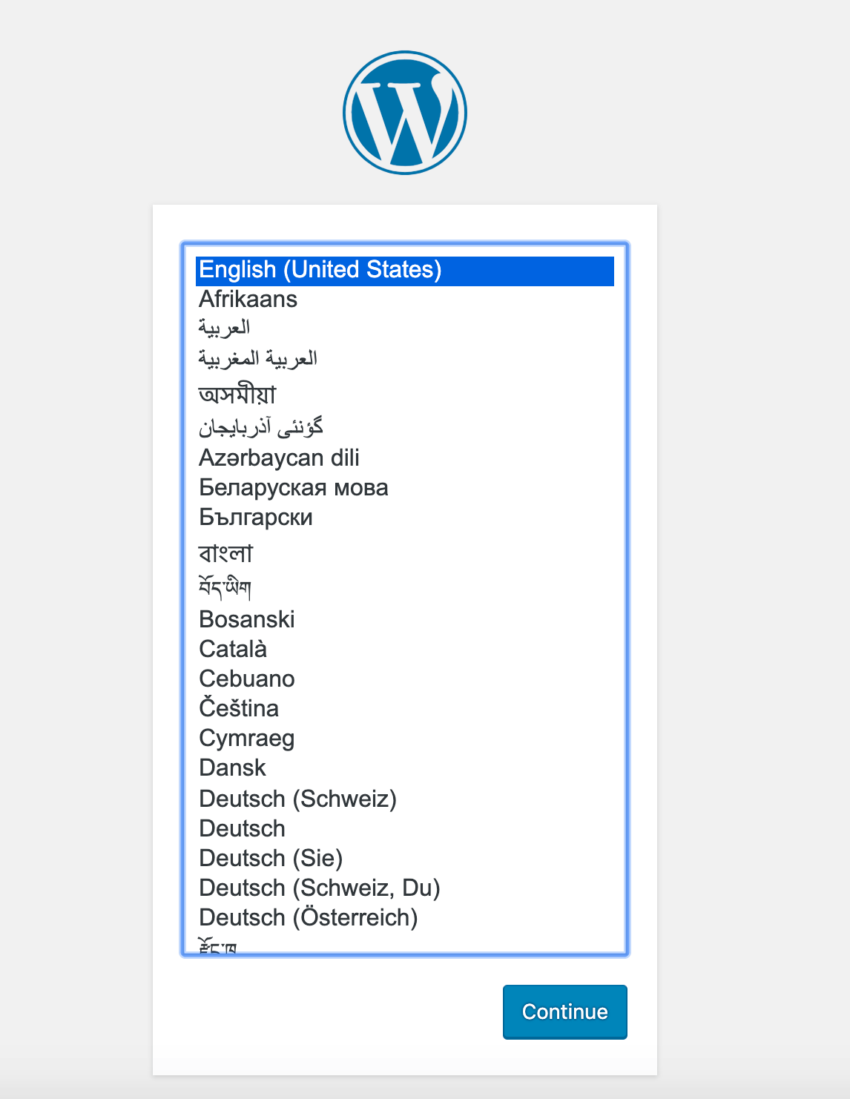

Select the language you would like to use:

Setting Up WordPress

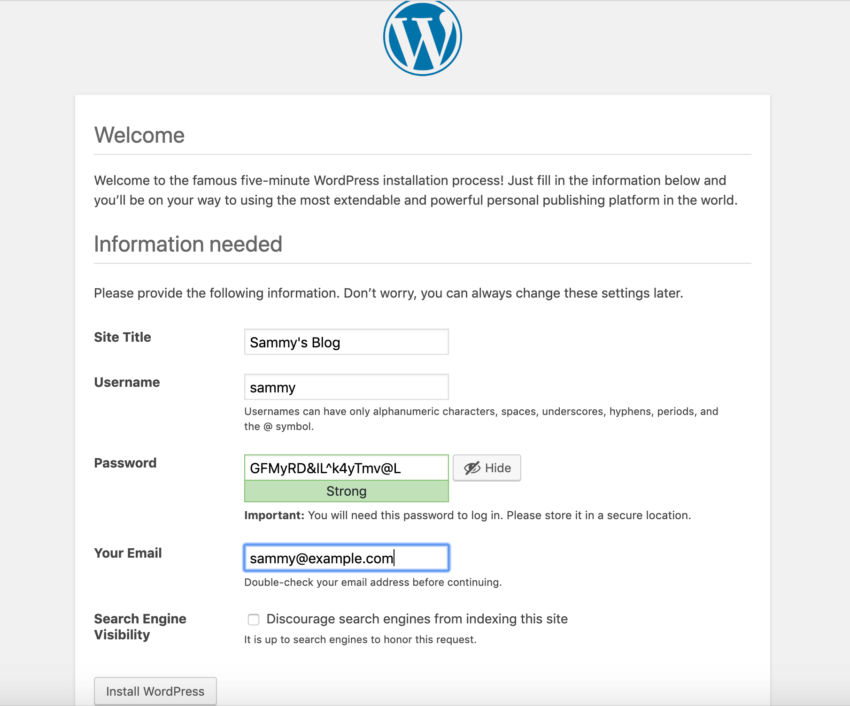

After clicking Continue, you will land on the main setup page, where you will need to pick a name for your site and a username.

• Choose a memorable username (rather than “admin”).
• Use a strong password (WordPress generates one automatically, or you can create your own).
• Enter your email address.
• Decide whether or not you want to discourage search engines from indexing your site.

Finalizing Installation

Clicking on Install WordPress at the bottom of the page will take you to a login prompt:

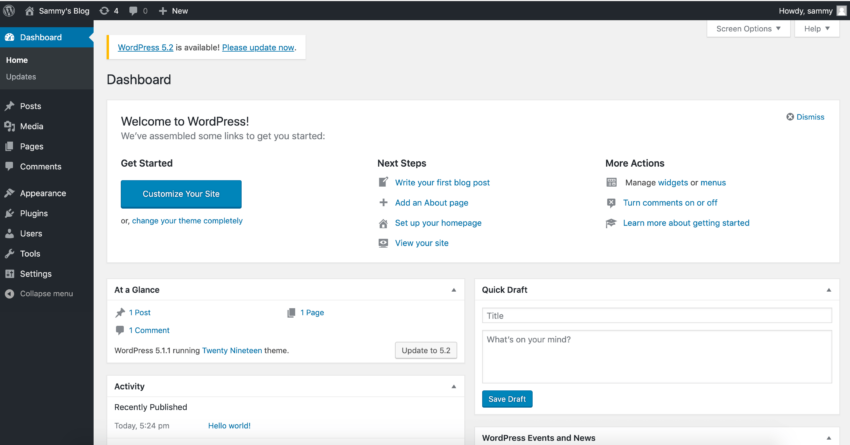

Once logged in, you will have access to the WordPress administration dashboard:

With your WordPress installation complete, you can take steps to ensure that your SSL certificates will renew automatically.

Step 7 — Renewing Certificates

Let’s Encrypt certificates are valid for 90 days. You can set up an automated renewal process to ensure that they do not lapse. One way to do this is to create a job with the cron scheduling utility. In the following example, you will create a cron job to periodically run a script that will renew your certificates and reload your Nginx configuration.

Creating the SSL Renewal Script

First, open a script called ssl_renew.sh:

nano ssl_renew.sh

Add the following code to the script to renew your certificates and reload your web server configuration. Remember to replace sammy with your own non-root username:

#!/bin/bash

COMPOSE="/usr/local/bin/docker-compose --no-ansi"
DOCKER="/usr/bin/docker"

cd /home/sammy/wordpress/
$COMPOSE run certbot renew --dry-run && $COMPOSE kill -s SIGHUP webserver
$DOCKER system prune -af

This script does the following:

• Assigns the docker-compose binary to a variable called COMPOSE and specifies the --no-ansi option to disable ANSI control characters.
• Assigns the docker binary to a variable called DOCKER.
• Changes to the ~/wordpress project directory.
• Runs the following Docker commands:
  • docker-compose run: Starts a certbot container and overrides its default command to use renew --dry-run, which simulates a renewal.
  • docker-compose kill: Sends a SIGHUP signal to the webserver container to reload the Nginx configuration.
  • docker system prune: Cleans up unused containers and images.

Close the file when you are finished editing. Make it executable with the following command:

chmod +x ssl_renew.sh

Setting Up the Cron Job

Next, open your root crontab file to run the renewal script at a specified interval:

sudo crontab -e

If this is your first time editing this file, you will be asked to choose an editor:

Output
no crontab for root - using an empty one

Select an editor.  To change later, run 'select-editor'.
  1. /bin/nano        <---- easiest
  2. /usr/bin/vim.basic
  3. /usr/bin/vim.tiny
  4. /bin/ed

Choose 1-4 [1]:

At the very bottom of this file, add the following line:

*/5 * * * * /home/sammy/wordpress/ssl_renew.sh >> /var/log/cron.log 2>&1

This sets the job interval to every five minutes for testing purposes. A log file, cron.log, is created to record output from the job.

Checking the Cron Job

After five minutes, check cron.log to confirm whether or not the renewal request has succeeded:

tail -f /var/log/cron.log

The following output confirms a successful renewal:

Output
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
** DRY RUN: simulating 'certbot renew' close to cert expiry
**          (The test certificates below have not been saved.)

Congratulations, all renewals succeeded. The following certs have been renewed:
  /etc/letsencrypt/live/your_domain/fullchain.pem (success)
** DRY RUN: simulating 'certbot renew' close to cert expiry
**          (The test certificates above have not been saved.)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Exit out by entering CTRL+C in your terminal.

Setting Up Daily Renewals

You can modify the crontab file to set a daily interval. To run the script every day at noon, modify the last line of the file like this:

0 12 * * * /home/sammy/wordpress/ssl_renew.sh >> /var/log/cron.log 2>&1

Also, remove the --dry-run option from your ssl_renew.sh script:

#!/bin/bash

COMPOSE="/usr/local/bin/docker-compose --no-ansi"
DOCKER="/usr/bin/docker"

cd /home/sammy/wordpress/
$COMPOSE run certbot renew && $COMPOSE kill -s SIGHUP webserver
$DOCKER system prune -af

Your cron job will ensure that your Let’s Encrypt certificates don’t lapse by renewing them when they are eligible. ou can also set up log rotation with the Logrotate utility on Ubuntu 22.04 / 20.04 to rotate and compress your log files.

Conclusion

In this tutorial, you used Docker Compose to create a WordPress installation with an Nginx web server. As part of this workflow, you:

• Defined and set up services using docker-compose.yml.
• Configured Nginx as the web server and obtained TLS/SSL certificates using Certbot.
• Set up automated SSL certificate renewal through a cron job.

With this setup, your WordPress site is secured with HTTPS, and your SSL certificates will renew automatically, ensuring continuous security and uptime.
